Configure OCSP Stapling

Published April 5, 2023 | Last modified November 12, 2026

Objective

This document provides instructions on how to enable Online Certificate Status Protocol (OCSP) stapling for your certificates. OCSP stapling provides improved information on the revocation status and enhances efficiency of bandwidth management.

Using the instructions provided in this guide, you can request and obtain an OCSP must-staple certificate from a Certificate Authority (CA) and apply it in an F5® Distributed Cloud Services load balancer.

Prerequisites

Generate Certificate with OCSP Must-Staple Extension

Enabling OCSP stapling requires you to first obtain a certificate with OCSP must-staple extension from a CA.

Note: Self-signed certificates are not supported for OCSP stapling.

Perform the following to obtain a CA-signed certificate with OCSP must-staple extension:

Step 1: Create a TLS configuration file with the CN and DNS entries pointing to your CA domain name.

This example shows the sample configuration file tls_config with ocsp-must-2.helloedge.app as the sample domain name:

Terminal window
[req]
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no
[req_distinguished_name]
CN = ocsp-must-2.helloedge.app
[v3_req]
keyUsage = keyEncipherment, digitalSignature
extendedKeyUsage = serverAuth
subjectAltName = @alt_names
tlsfeature = status_request
[alt_names]
DNS.1 = ocsp-must-2.helloedge.app
Step 2: Create a Certificate Signing Request (CSR) with the OCSP Must-Staple extension.

This example shows a sample CSR:

Terminal window
openssl req -new -out out.csr -newkey rsa:2048 -nodes -sha256 -keyout out.key -config tls_config
Step 3: Request and obtain a certificate from the CA.

This example shows a sample request from the Let's Encrypt CA:

Terminal window
sudo certbot certonly --register-unsafely-without-email --manual --preferred-challenges dns --must-staple --csr out.csr -d ocsp-must-2.helloedge.app
Step 4: Verify that the certificate is enabled with OCSP support.
  • Check for the method from the command line:
Terminal window
openssl x509 -in <cert-name>.crt -noout -text
  • Import and view the certificate from a browser:

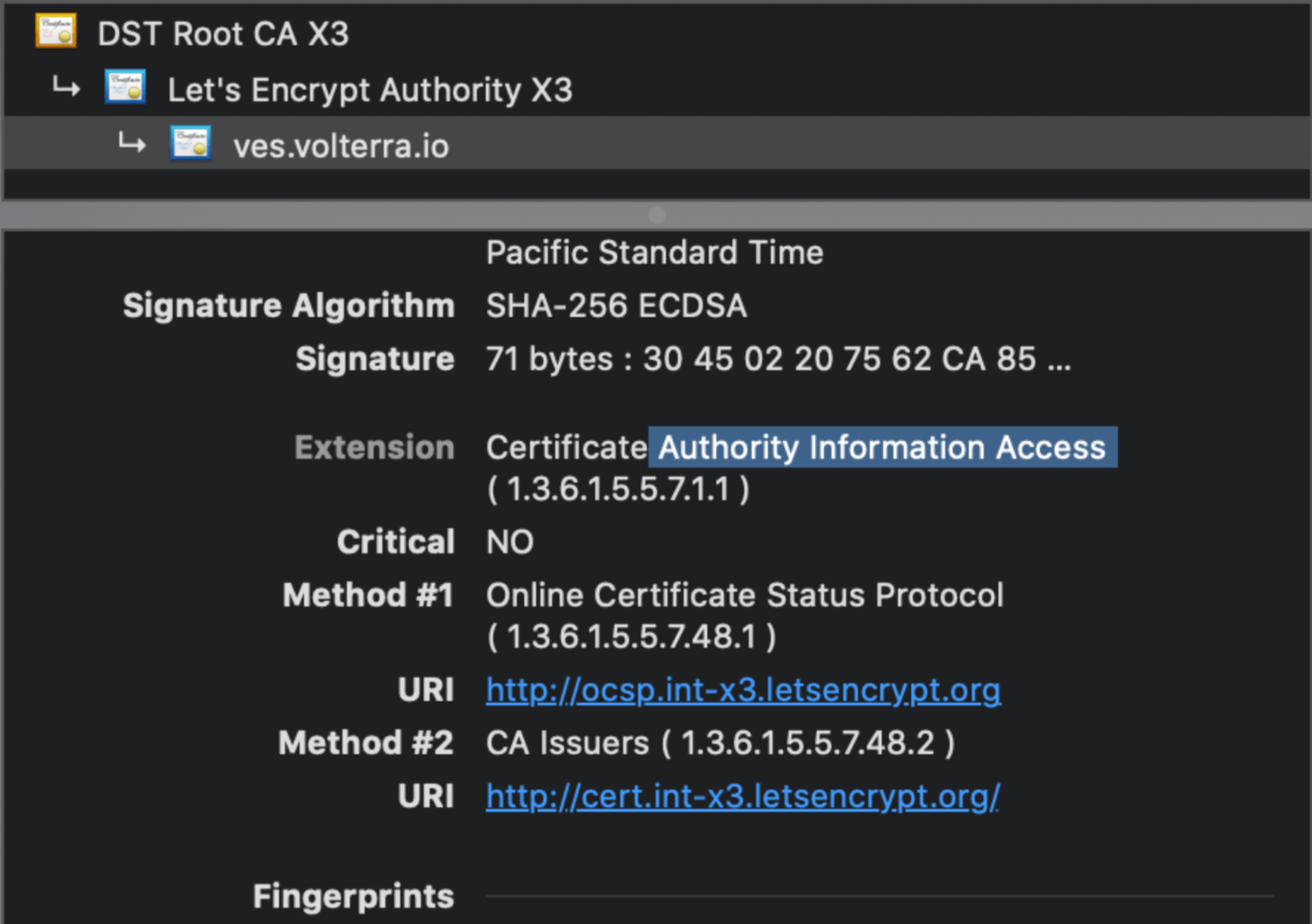

Figure: OCSP Enabled CA Signed Certificate

Figure: OCSP Enabled CA Signed Certificate

Apply Certificate in Load Balancer Configuration

Apply the certificate created in the section above to the configuration of the load balancer.

Step 1: Navigate to load balancer to edit.

  • In Console, select Multi-Cloud App Connect.

  • Navigate to Manage > Load Balancers > HTTP Load Balancers.

  • Find your load balancer and then select ... > Manage Configuration.

  • Select Edit Configuration.

Step 2: Configure certificate information.

  • In the Domains and LB Type section, perform the following:

    • From the Load Balancer Type menu, select HTTPS with Custom Certificate.

    • From the TLS Configuration menu, select Inline Certificate (legacy).

    • Click Configure.

    • Click Add Item.

    • In the Certificate box, click Import from File.

    • In the popup window, click Upload File to select the certificate file. Then click Import.

    • Optionally, enter a description for this certificate file.

    • From the OCSP Stapling choice menu, select Fetch with F5XC default settings or Use hash algorithms in custom order. If you chose a hash algorithm, select it from the Hash Algorithms menu.

    • Click Apply to save OCSP configuration.

    • Click Apply to save TLS parameters configuration.

Step 3: Save load balancer configuration.

Click Save and Exit.
